應用：

本機適用于醫藥、化工、食品等行業對干粉物料的粒度進行分選。

This machine is applied in the sorting of the granule size of dry powder materials in trades of medicine, chemical and foodstuff etc.

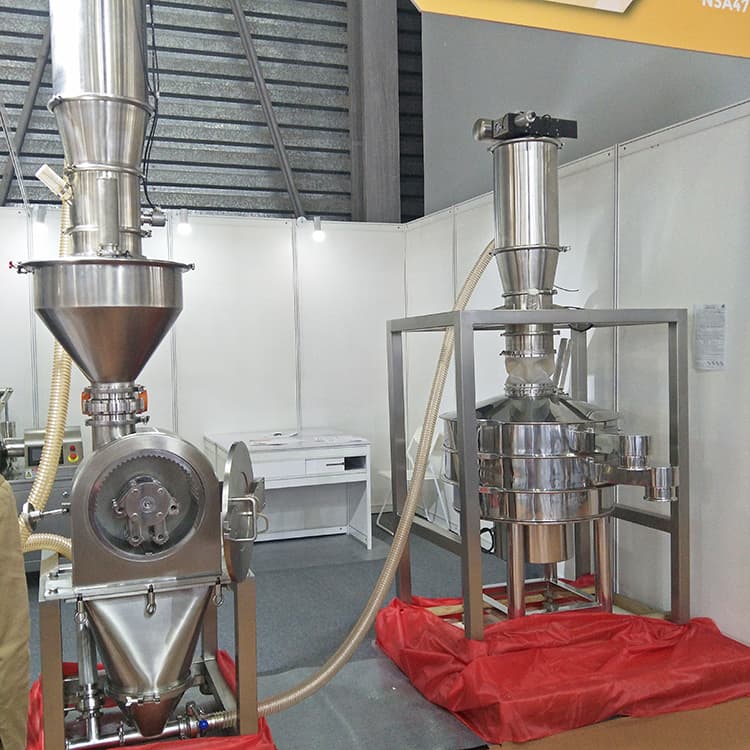

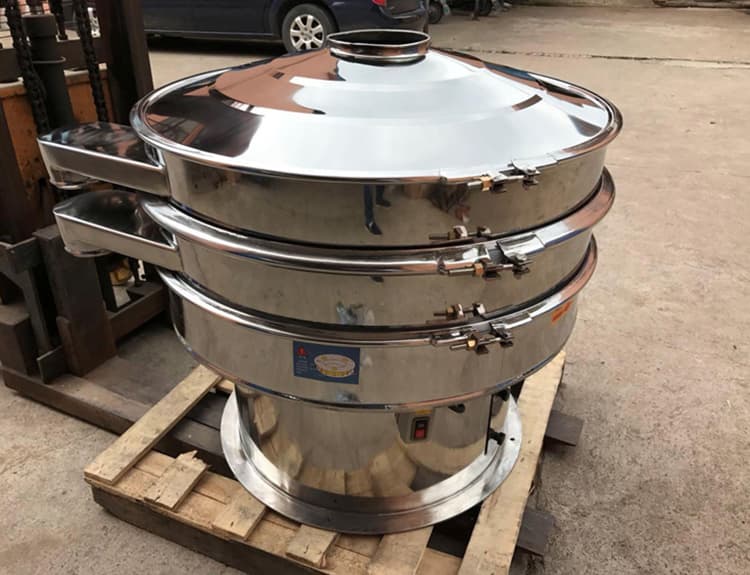

應用圖：



特點：

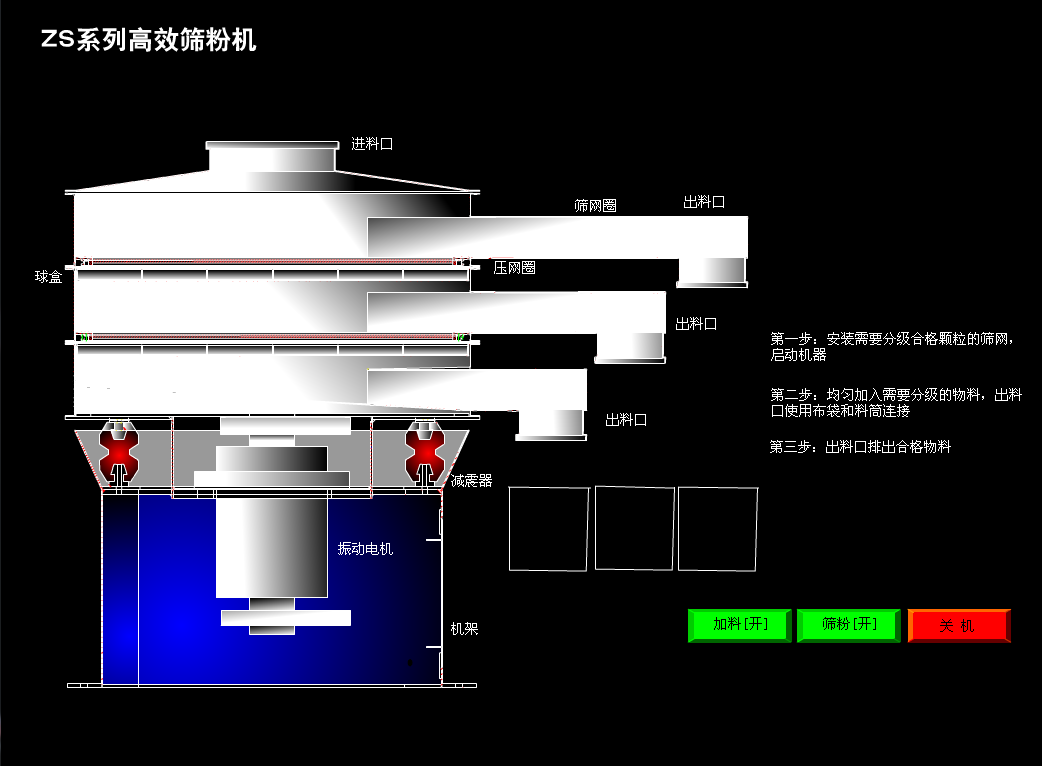

該機由立式激振電機，篩底， 網架， 篩粉室，橡膠振蕩碗等各緊固件組成。本機可用于單層或多層篩網分選使用，具有結構緊湊、操作維修方便，運轉平穩、噪音低、處理物料量大、細度小，適用廣泛等優點。

This machine is composed of vertical vibration motor,a sieve bottom, a mesh frame, sieve room,rubber vibrating bowl, and all fastening pieces.

It can be operated for sorting purpose either in single sieve or multi-sieves with a compact structure,

 ease operating and repairing, smooth running, low noise,large target material-treating, good fineness and wide applicability.



技術參數：

型號	STGZ-400	STGZ-600	STGZ-800	STGZ-1000	STGZ-1200
產量(kg/h)	20-200	150-1200	200-2000	250-3000	300-4000
外形尺寸	600*600*1000	800*800*1100	1100*950*1150	1100*1100*1250	1300*1300*1400
功率	0.55	0.55	0.75	1.5	1.5
過篩目數(mesh)	20-180	20-180	20-180	20-180	20-180
振動頻率(r/min)	1500	1500	1500	1500	1500
重量	120	180	220	300	400
